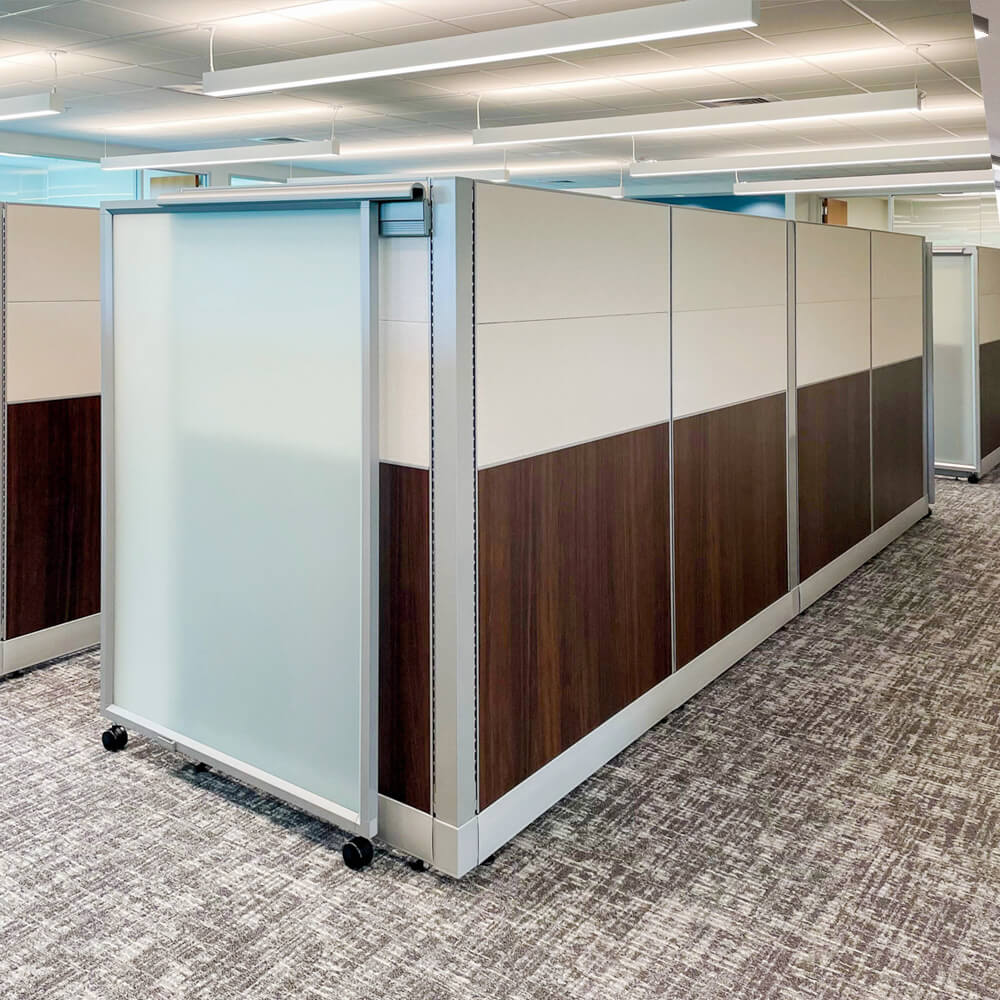

Sliding Cubicle Door

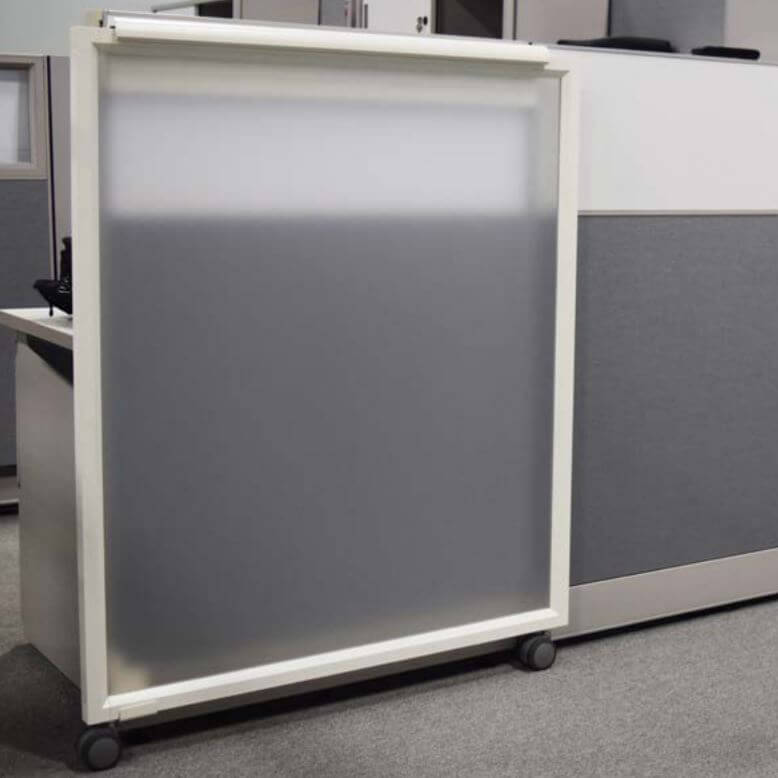

The AO2 Sliding Cubicle Door is a great way to add a privacy barrier to your work cubicles.
Installation is simple and straightforward, but know this:
• It is compatible with and can only be installed on AO2 Style Herman Miller Cubicle panels.
• These sliding doors are available in only 2 heights: 53" and 67".
• Rail attachment is available in 4 widths: 36", 42", 48", or 60".

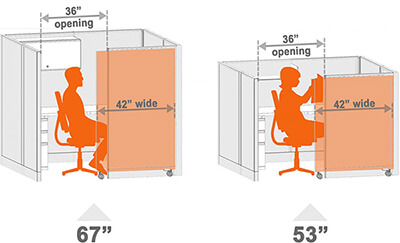

• This door will only – and always - cover a 36" opening.
• Your door height selection should correspond to the panel height of your workstation:
This cubicle door itself is 42” wide and must be ordered with an attachment rail that corresponds to the width of the panel to which it will be attached.
THESE DOORS ARE ONLY COMPATIBLE WITH AO2 STYLE CUBICLE SYSTEMS
FEATURES:

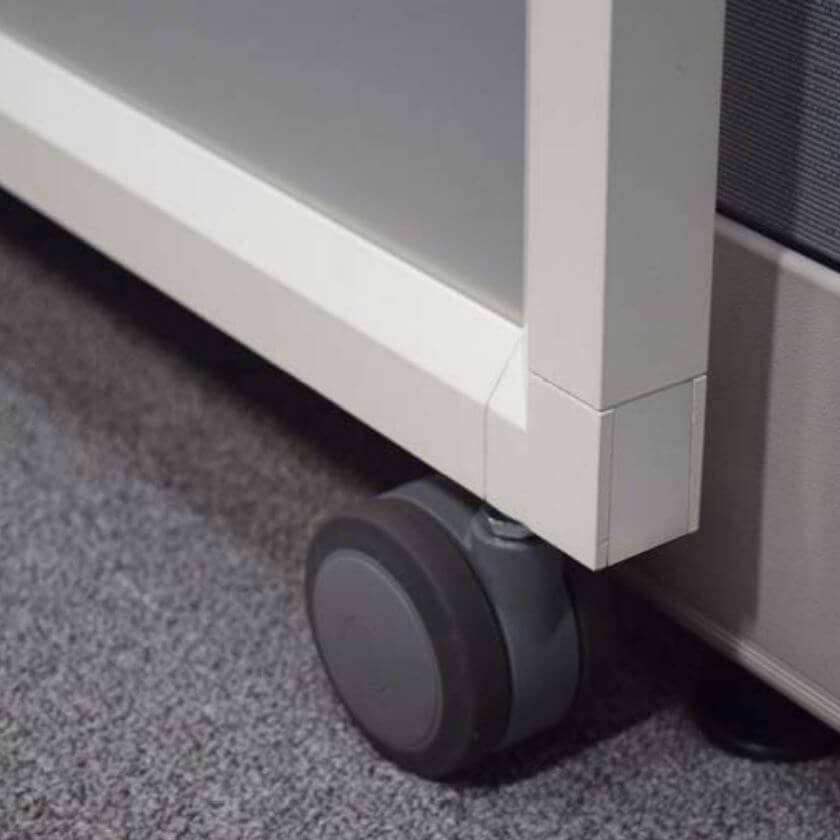

• 2” x 3.75” (W x H) Casters for Easy Glide open and close.
• Standard to fit upon 36” wide panel & cover 36” opening.
• Optional rails to fit 42”, 48” and 60” wide panels & cover 36” opening.
COLORS & MATERIALS:
Sliding Cubicle Door body is 5mm Thick Frosted Tempered Glass.
The aluminum frame is available in 6 paint colors:
White Frost, Light Tone, Inner Tone Light, Metallic Silver, Medium Tone & Black Umber.
PLEASE NOTE:
colors may vary depending on your monitor - CONTACT US for accurate samples
Please consider all factors influencing color perception when choosing trim paint colors. Natural or artificial light, time of day, and surrounding colors in your office environment all can influence ones visual perception of color.
HOW TO DEFINE THE RAIL WIDTH:

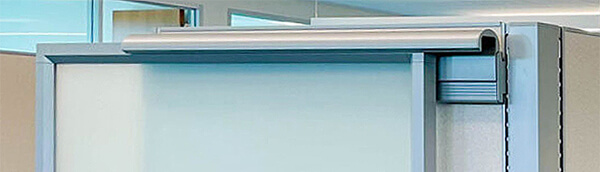

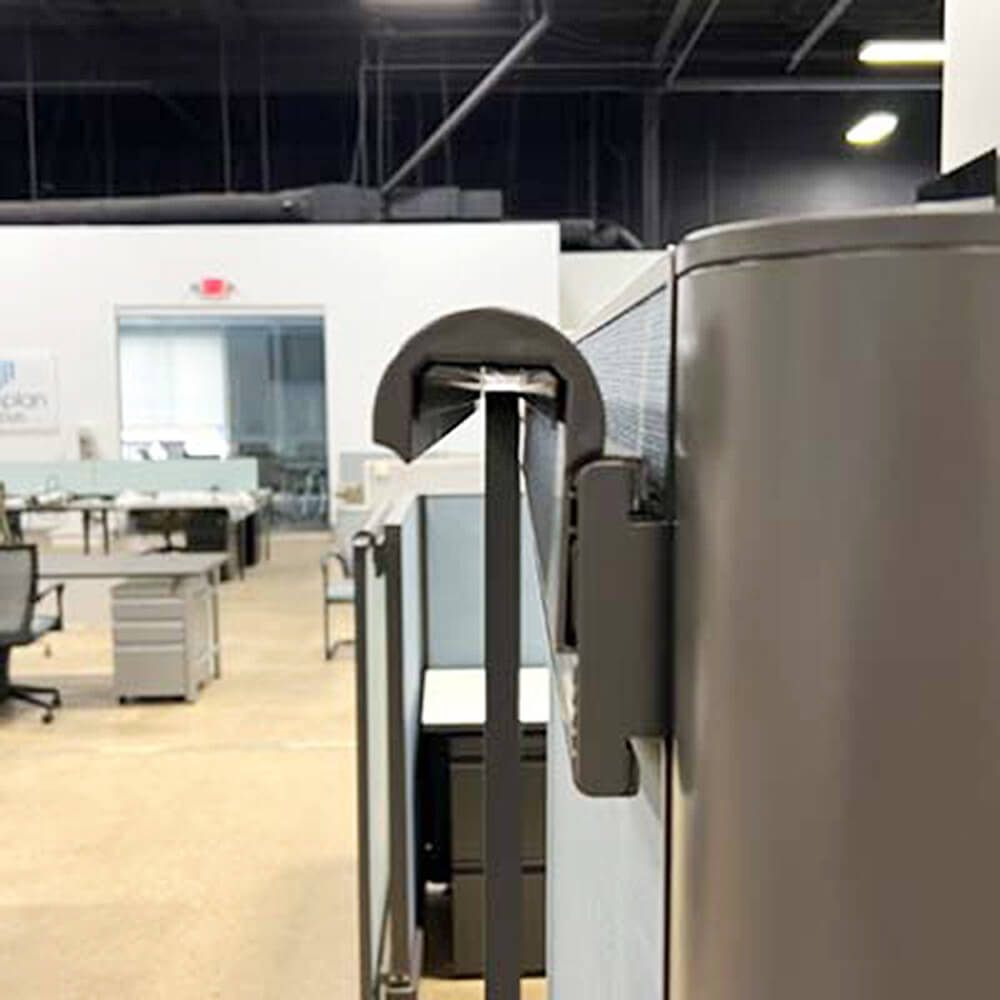

You can add this sliding door to your existing AO2 compatible cubicle panel by rail attachment. This rail attachment is designed specifically to fit into the AO2 panels vertical key holes.
Thus, the rail width is equal to the width of the panel to which it will be attached.

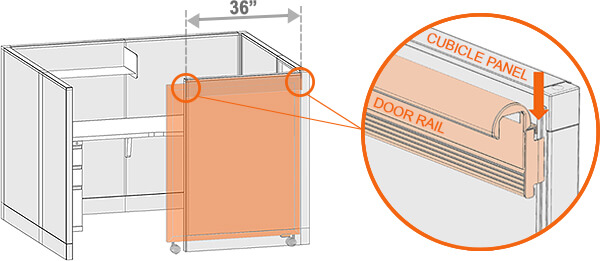

The illustration below depicts a 36" wide rail connected into a 36” wide O2 cubicle panel:
CERTIFICATIONS & WARRANTY:
This compatible AO2 Herman Miller Cubicle door is warranted to be free of defects in materials and workmanship and is backed by a limited lifetime warranty. This warranty does not apply to user-caused damage or misuse and does not cover normal wear and tear. This warranty applies specifically to and will not extend beyond these periods: tempered glass 5 years, casters 1 year.
Cubicles.com is not affiliated, associated, endorsed by, or in any way connected with Herman Miller, Inc. and is not an authorized dealer or representative of Herman Miller, Inc. Herman Miller, Inc. has not evaluated and does not confirm the compatibility of any cubicles.com product with any product of Herman Miller, Inc.

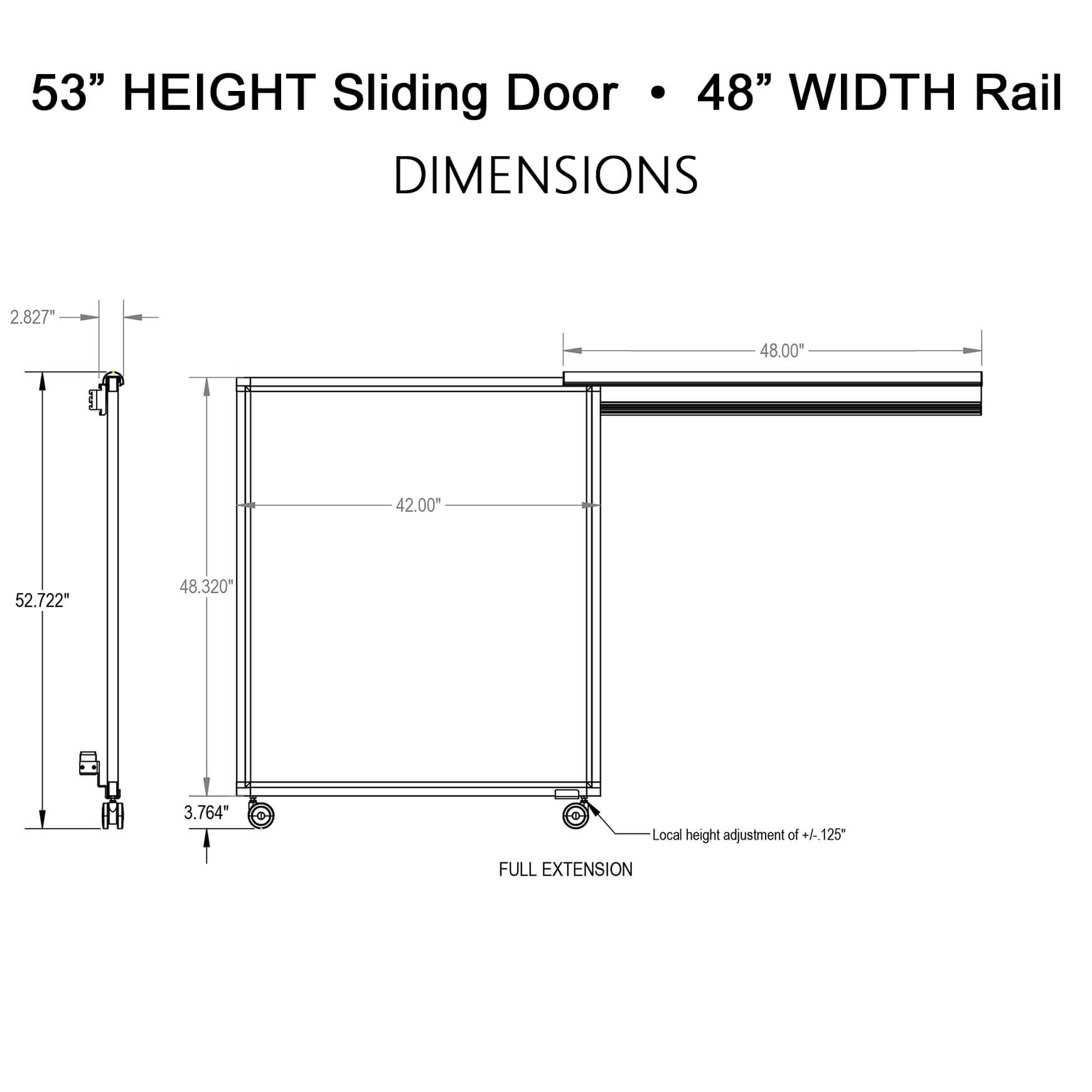

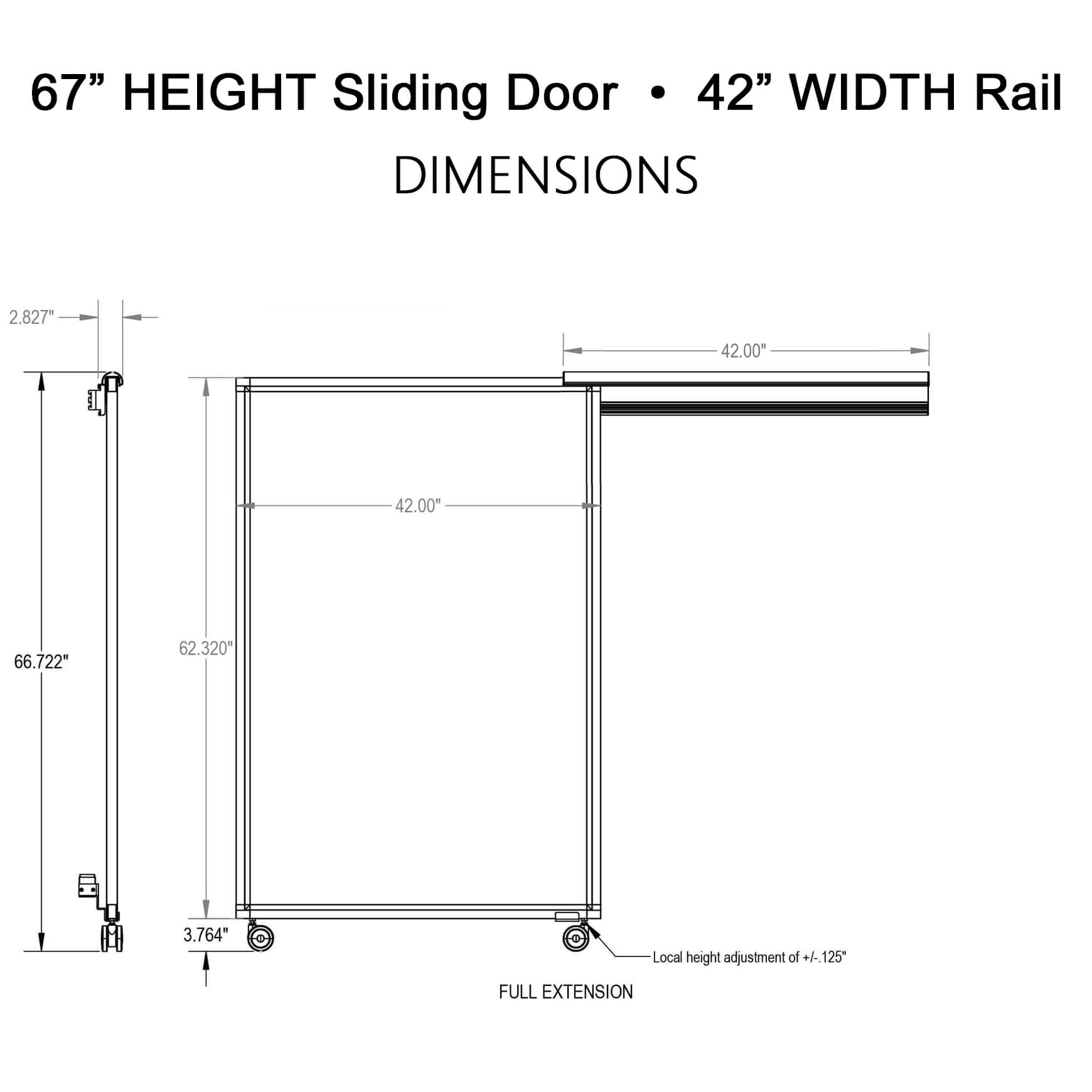

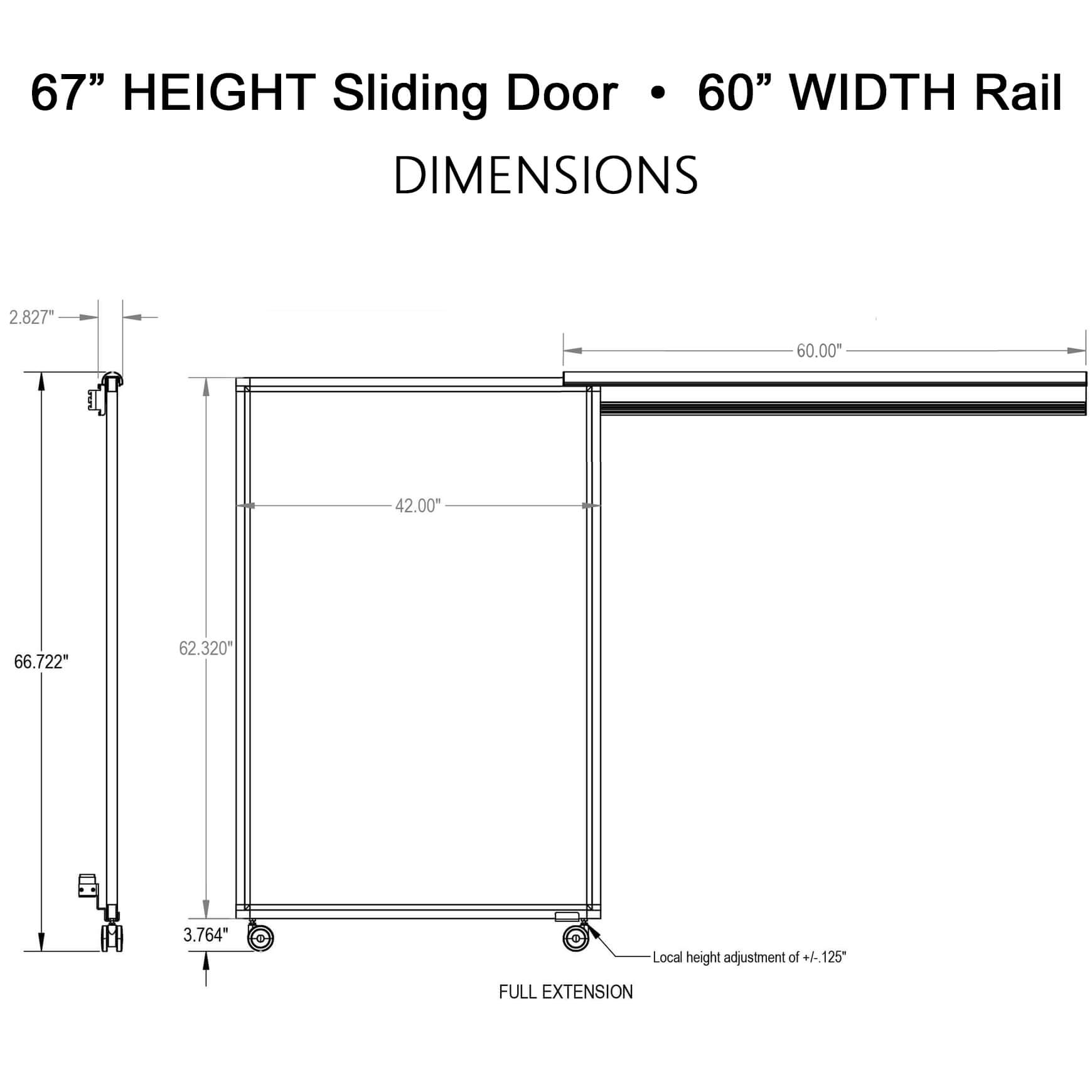

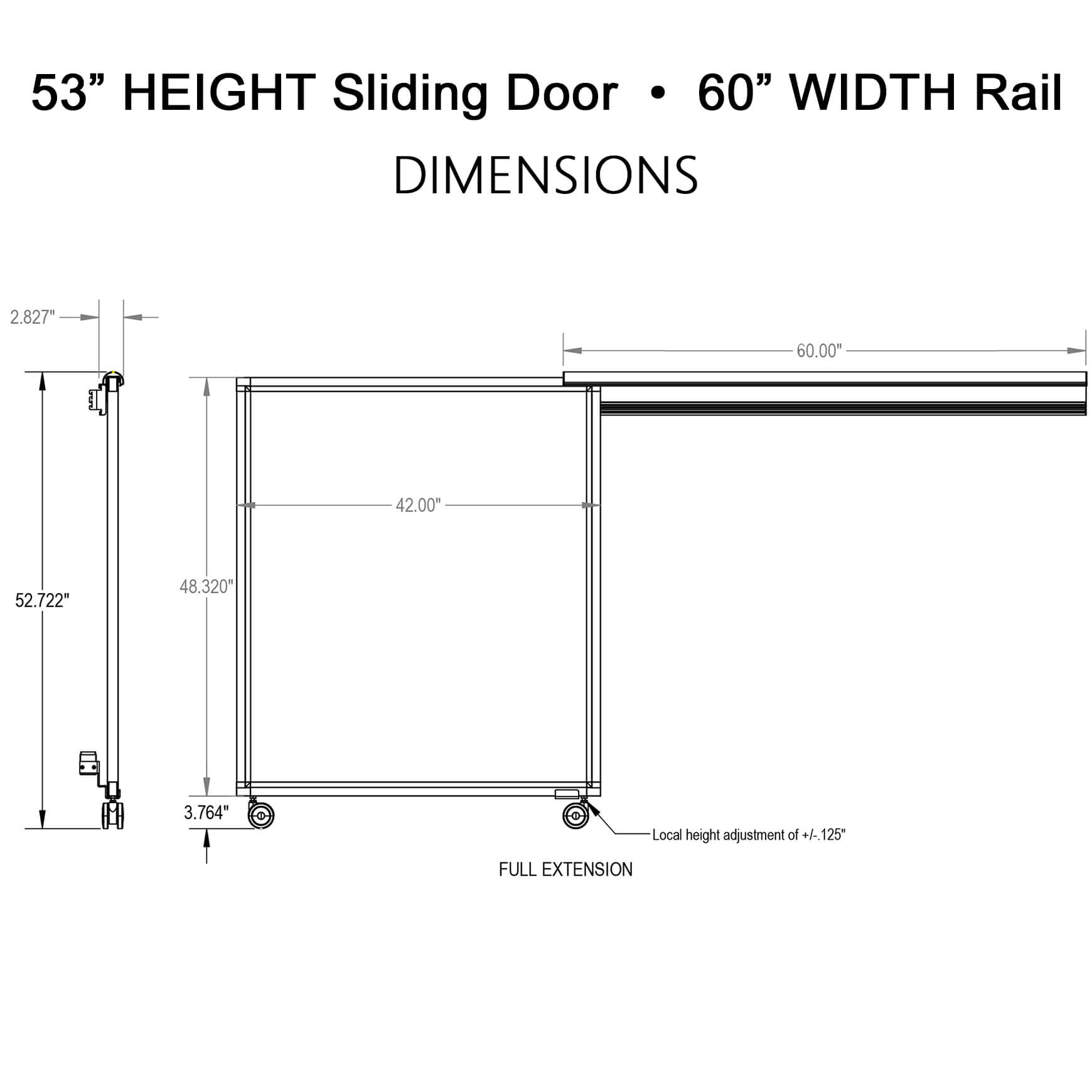

ASSEMBLED DIMENSIONS:

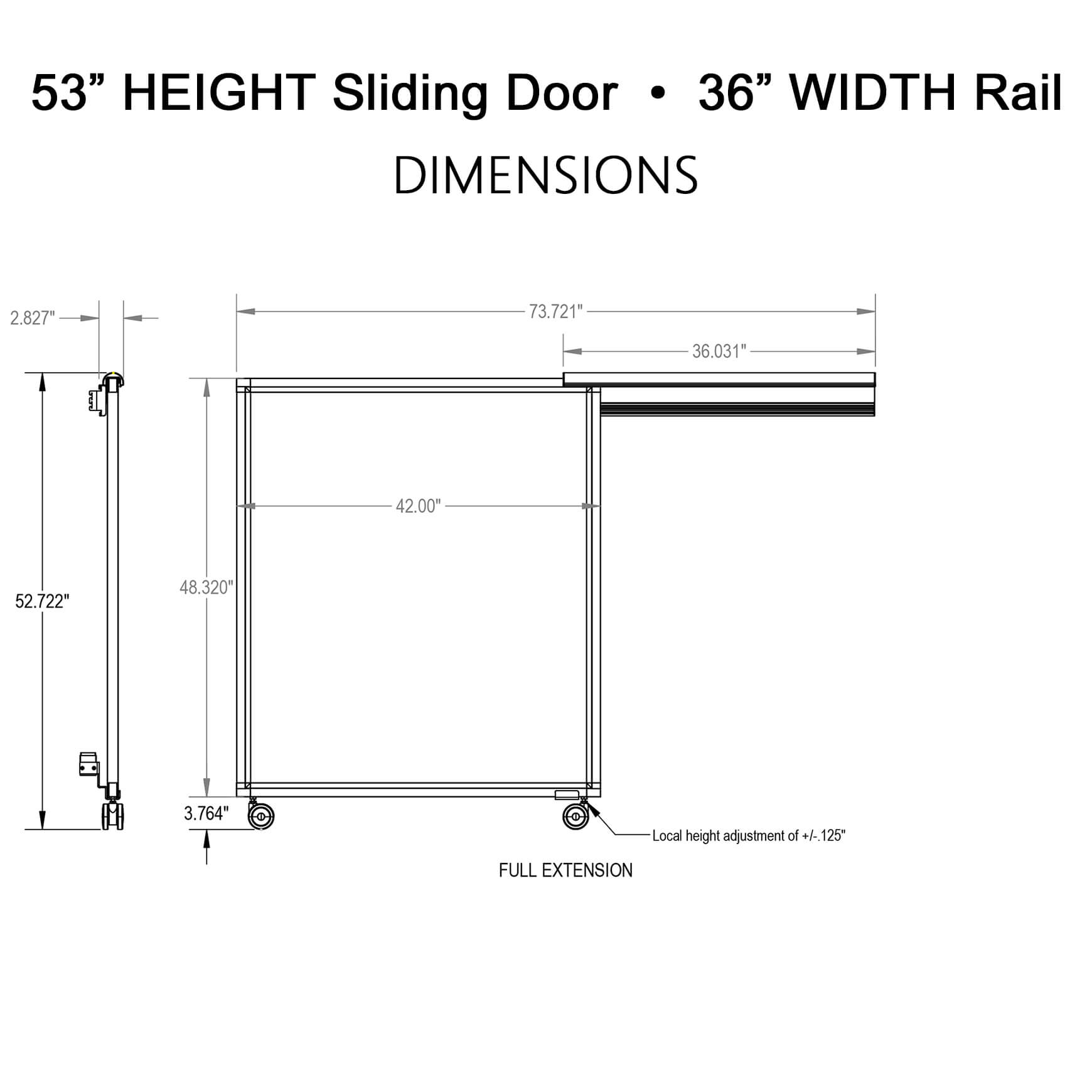

53" Height x 36" Rail: 42"W x 53"H53" Height x 42" Rail: 42"W x 53"H
53" Height x 48" Rail: 48"W x 53"H
53" Height x 60" Rail: 60"W x 53"H

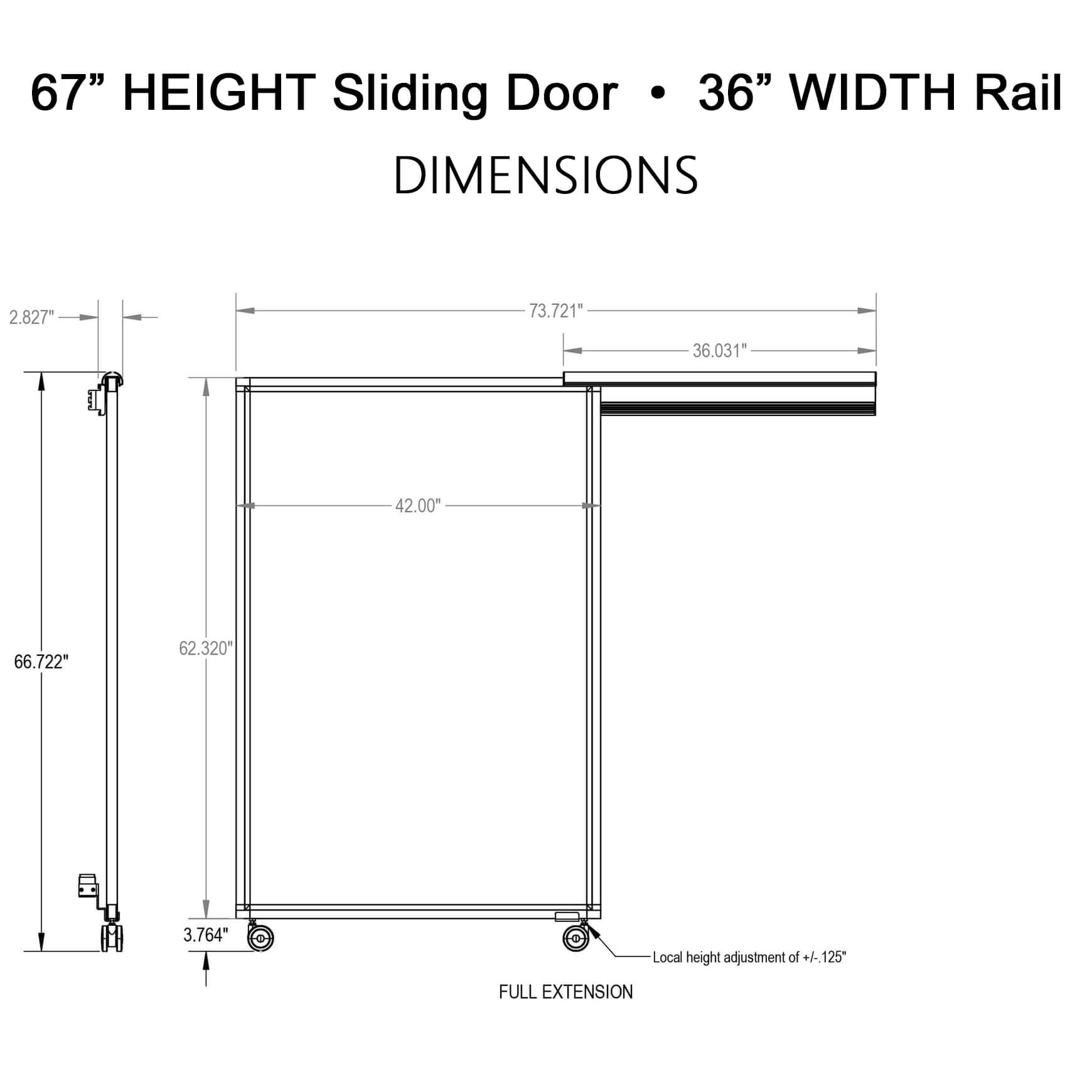

67" Height x 36" Rail: 42"W x 67"H
67" Height x 42" Rail: 42"W x 67"H

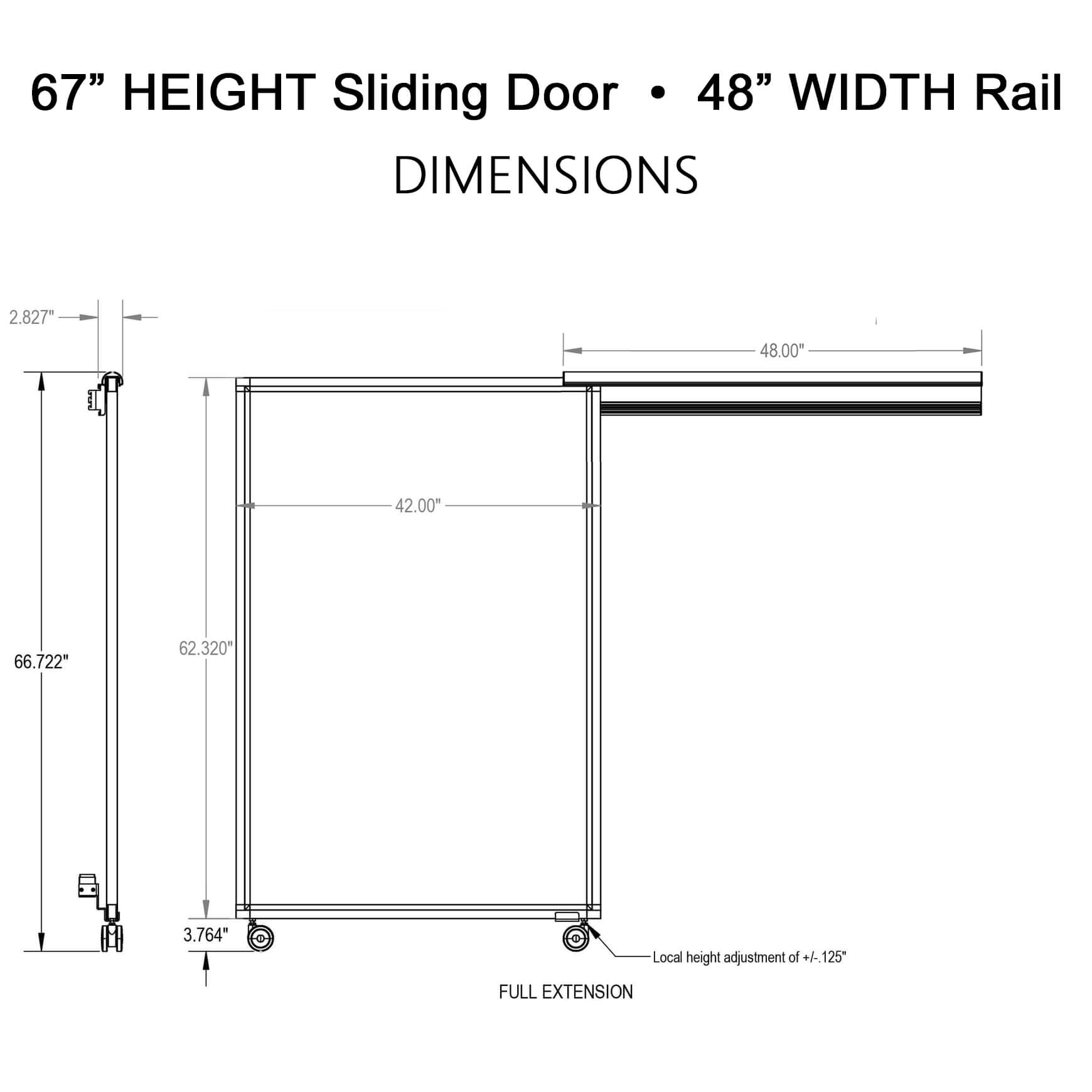

67" Height x 48" Rail: 48"W x 67"H
67" Height x 60" Rail: 60"W x 67"H
CUB-SLIDING-DOORXX.XX-TRBXX-SPO
SHIPPING DIMENSIONS:
Ships palletized.SHIPPING:
ASSEMBLY:
Your Sliding Cubicle Door will require minor assembly, and will come with illustrated instructions in the package. Confirm you have all the parts and hardware before you begin, and do not throw away any packaging until you have completed assembly. We suggest assembling on carpet or protected surfaces to avoid scratches.
