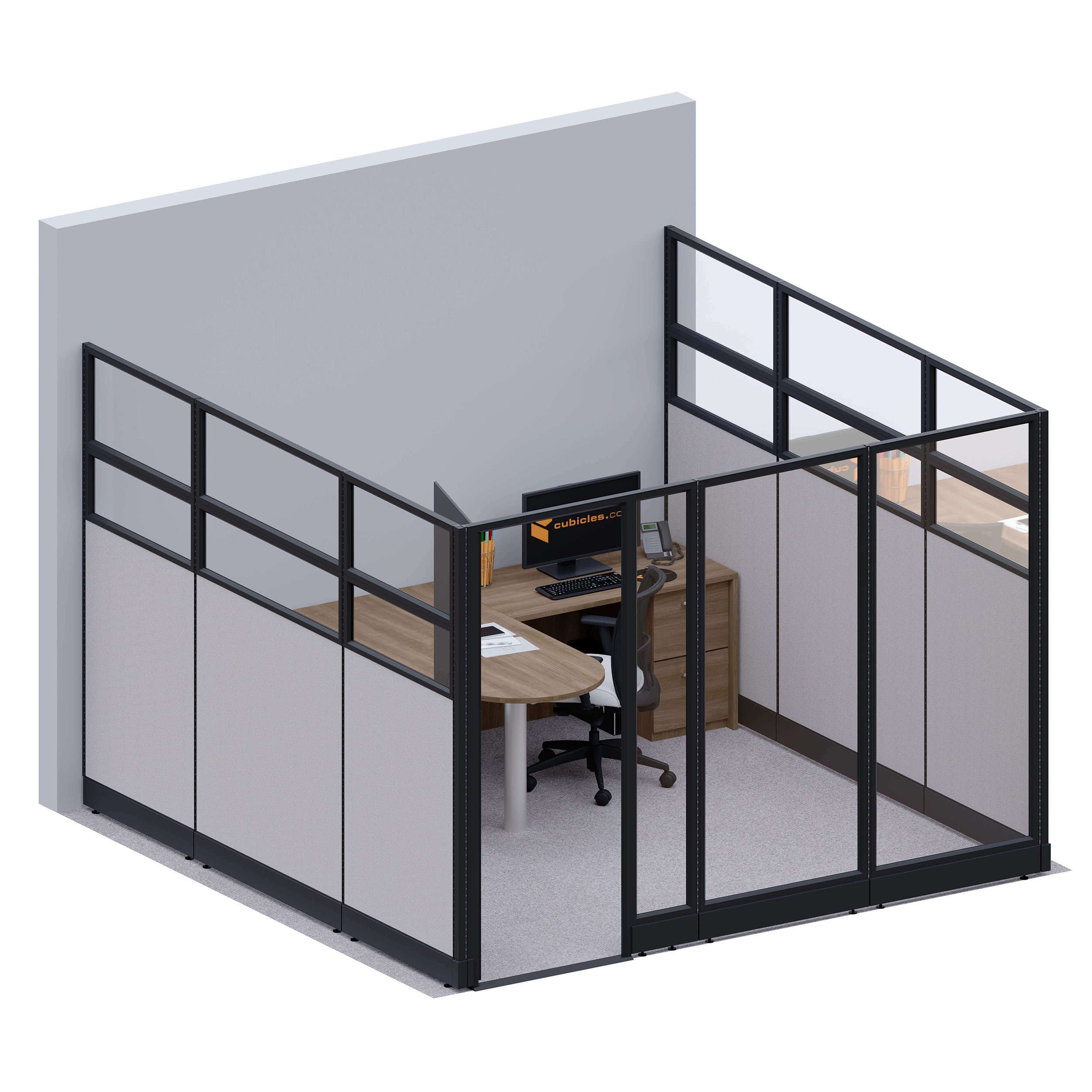

Modular Wall SystemU7
These modular wall panels for office spaces are arranged in a U-formation consisting of 3 movable office walls. Each of the side walls must be affixed to an existing architectural wall for stability and support.
Series 7 office wall panels are 85” or 7’.08” tall and are ideal for office interiors with lower ceilings or those with fixed in place building systems, i.e. sprinklers, HVAC ducts, architectural supports, etc., or where the preference is not floor to ceiling. Want higher? Go Series 9!
Estimated pricing is for non-powered, non-tackable office panels and metal office doors only, configured as pictured. Blue tinted areas on the 3D schematics indicate glass. Any desks, seating, or storage shown is sold separately.
These interior office walls are not freestanding and must be connected to each other, run no longer than 10ft, and attach securely to a fixed wall with O2™ hardware components to stand safely. Perpendicular attachment at 90 degrees only.
The standard options provided here offer the best pricing and fastest shipping for modular office partitions panels. Custom configurations are available upon request and subject to minimum quantities, added production time and cost.
All O2™ office wall panels are 2” thick with adjustable height leveling furniture floor glides and detachable 5”H base covers on both sides of the panel that conceal data wire management (2900). Full length steel hanger rails have slots at 1” increments for hanging O2™ components (purchased separately).
O2™ is a demountable wall system with straightforward “connect-snap-screw” assembly and offers tax advantages since demountable walls are considered section 179 office furniture.
Feature upgrades include custom sizes and configurations and integrated systems office furniture solutions including electrical raceways and storage components. Freestanding office furniture is easily accommodated.
COLORS & MATERIALS:
These modular office walls have precision engineered powder coated steel frames in black, white, or silver, and a painted-to-match metal office door with glass sidelight. The office door lock system is a lever lock set with keyed entry on the outside, and a thumbturn lock on the inside.
The fabric partitions panel core (innards) is a corrugated, honeycombed paperboard covered on the front and back with 1/8” medium density fiberboard – keeping the panels lightweight and sound absorbent. The fabric panel has multi-colored threads of beiges and greys - super simple, neutral, and easily matched.
Glass panel and plexiglass partition panels are transparent/clear. Full length panels or areas low to the ground use plexiglass for its lighter weight, resilience, and break-proof characteristic. Higher areas (like transoms) use real glass for cost savings.
Finish upgrades include: additional paint colors, fabric colors and patterns, tackable or acoustic panel fabric , solid color or woodgrain laminates for panel partition walls & doors, a framed hinged office door with glass (clear or frosted), your choice of left or right swing specification, and keyed-alike locks with a master key for the door handles.
CERTIFICATIONS & WARRANTY:
Our modular office walls are warrantied to be free of defects in materials and workmanship for as long as the original purchaser owns the product (misuse and normal wear and tear excluded). Here are our Full Terms of Service.
Glass: USA | Paint & Finish: USA | Assembly: USA | Fabric: USA or China | Add-On Componentry: USA & Canada & China.

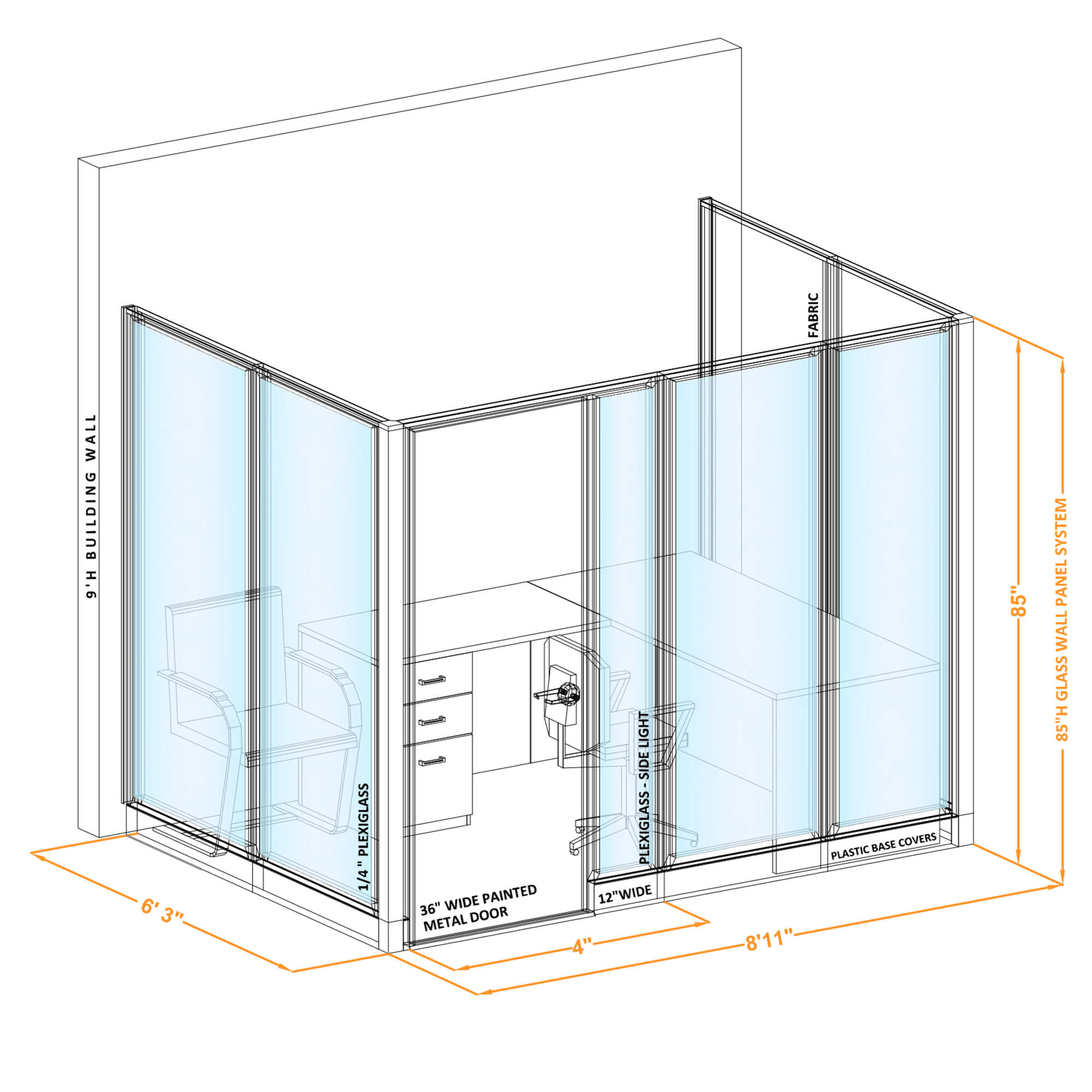

ASSEMBLED DIMENSIONS:Option 1: 8' 11"W x 6' 5"D x 7' 1"H

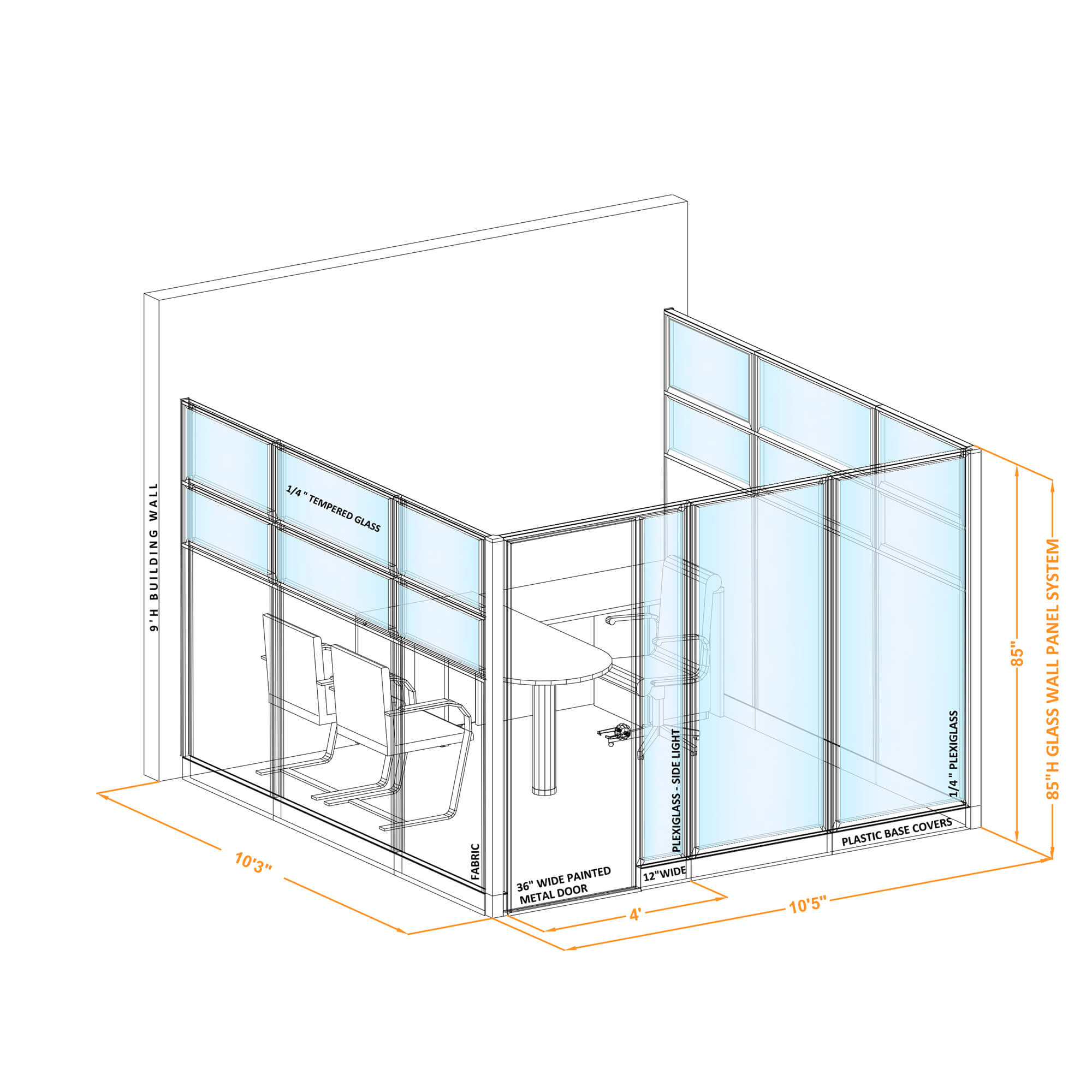

Option 2: 10' 5"W x 10' 5"D x 7' 1"H

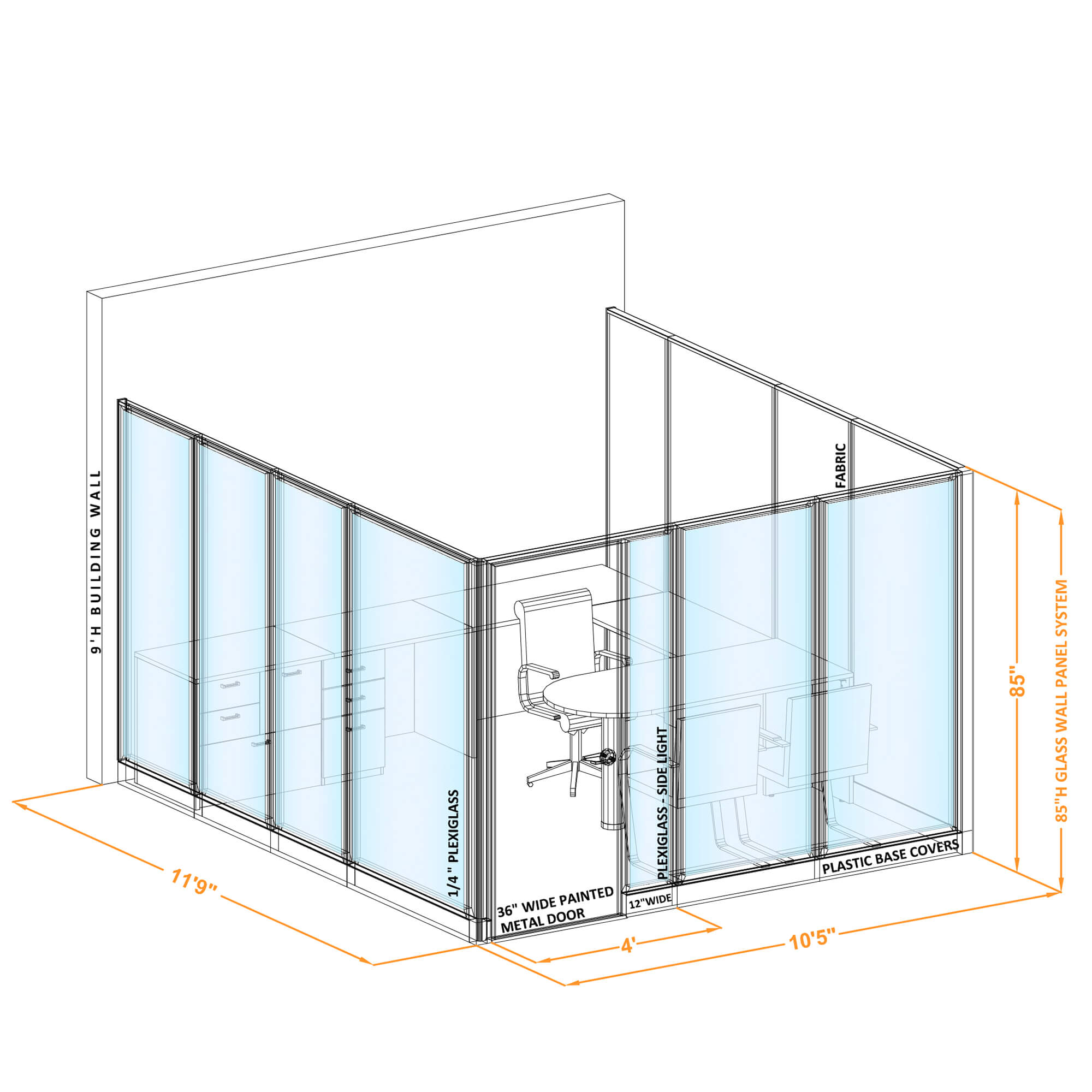

Option 3: 10' 5"W x 11' 11"D x 7' 1"H
SHIPPING DIMENSIONS:Ships palletized.
This is a CUSTOM, MADE TO ORDER ITEM. Return/replacement claims are accepted only ON DELIVERY for damages and/or defects, no other returns can be accepted.
Your O2™ Modular Office Walls will be DOCK DELIVERED (palletized and shipped via large freight truck). Dock Deliveries require either a forklift or a loading dock that can receive pallets, and available personnel to unload the items (the driver may help but is not required to do so). Dock Deliveries are not scheduled, and may arrive any time during normal business hours. If your dock is unavailable or unattended at the time of delivery, you may be subject to a re-delivery fee. A predelivery call is not guaranteed, but may be requested. PLEASE INCLUDE A VALID PHONE NUMBER WITH YOUR ORDER.
If you don’t have a loading dock or an available crew to unload, no need to fret! Just select "Inside Delivery" as your preferred delivery method at checkout and we’ll handle the rest. We’ll ship the freight to our local delivery crew who will receive and inspect your order, then call you to schedule a convenient delivery appointment during normal business hours. This service may add 2-5 business days to the delivery date.
Your Office Walls System Series 7 will ship with illustrated instructions, making assembly possible for skilled consumers experienced with furniture assembly. We recommend using at least 2 people, confirm you have all the parts and hardware before you begin, and do not throw away any packaging until you have completed the assembly. We suggest building on carpet or protected floors to avoid scratches. If the thought of “parts, pieces, dowels and cam locks” terrifies you, select our “Fully Assembled” option and then sit back and relax. Our qualified team will receive the shipment for you, call to schedule an appointment to deliver and assemble the items in your room of choice, and dispose of any trash/packaging. These services are available Mon-Fri 8am-5pm, are Non-Union rates, and assume ground floor or elevator access. If your delivery requires stairs, non-business hours, or union labor, please contact us ahead of time for a special quote
